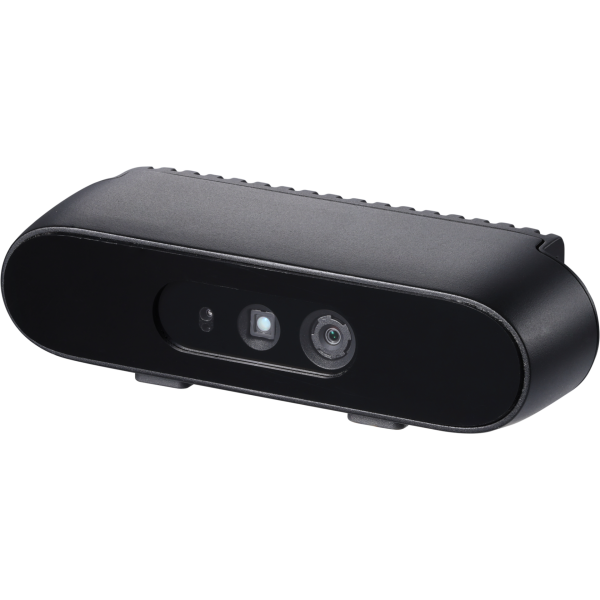

ORBBEC Gemini 336 Stereo Depth Camera
SKU
TEMP-ACC-0410
Brand
Reward Points
0
Product Description
Gemini 336
Gemini 336 is a new member of Orbbec's Gemini 330 series.
Built on the exceptional depth performance and quality of the Gemini 335, the Gemini 336 enhances active infrared imaging by filtering out the visible light spectrum, delivering stable and precise imaging even in challenging lighting conditions such as indoor reflective surfaces generating glare, brightly-lit scenes with shadows, and strong outdoor lighting.
- Stable Infrared Imaging
- Multimodal Perception
- Compact Size
Gemini 336 Specifications
| Camera Specifications | |
| Model | G40155-180 |
| Depth Technology | Stereo |
| Wavelength | 850nm |
| Depth Range | *0.17-20m+ (Optimal Range: 0.25-6m) |
| Depth Resolution/FPS | Up to 1280x800@30fps |
| Depth FOV | H90° V65° |
| RGB Resolution/FPS | Up to 1280X800@60fps |
| RGB FOV | H94° V68° |
| Processing | Orbbec ASIC |
| Physical Parameters | |
| Depth Filter | IR-Pass |
| IMU | Supported |
| Data Connection | USB 3.0 Type-C |
| Power Input | USB 3.0 Type-C |
| Trigger | Supported |
| Power Consumption | Average < 3.0W |
| Operating Environment | -10% - 45%: indoor/Outdoor: 5% - 90%RH(non- condensing |
| SDK Support | Orbbec SDK |
| Data Output | Point Cloud, Depth Map ,IR & RGB |
| Dimensions (W*H*D) | 90mm 25mm x 30.7mm |
| Weight | 99g |
| Installation | Bottom: 1/4 -20UNC Back 2x M3 |
Camera Specifications
| Parameters | Gemini 336 | Gemini 335 |
|---|---|---|
| Model | G40155-180 | G40055-170 |
| Depth Technology | Stereo | Stereo |
| Wavelength | 850nm | 850nm |
| Depth Range | 0.10 - 20m+ (Optimal Range: 0.26 - 3m) | 0.10 - 20m+ (Optimal Range: 0.26 - 3m) |
| Depth Resolution/FPS | Up to 1280X800@30fps | Up to 1280X800@30fps |
| Depth FOV | H90° V65° | H90° V65° |
| RGB Resolution/FPS | Up to 1920X1080@30fps | Up to 1920X1080@30fps |
| RGB FOV | H86° V55° | H86° V55° |
| Processing | Orbbec ASIC | Orbbec ASIC |
| Depth Filter | IR-Pass | All-Pass |
| IMU | Supported | Supported |
| Data Connection | USB 3.0 Type-C | USB 3.0 Type-C |
| Power Input | USB 3.0 Type-C | USB 3.0 Type-C |
| Trigger | Supported | Supported |
| Power Consumption | Average < 3.0W | Average < 3.0W |
| Operating Environment | -10°C - 45°C; Indoor/Outdoor; 5% - 90%RH (non-condensing) | -10℃ - 45℃; Indoor/Outdoor; 5%-90%RH(non-condensing) |
| SDK Support | Orbbec SDK | Orbbec SDK |
| Data Output | Point Cloud, Depth Map, IR & RGB | Point Cloud, Depth Map, IR & RGB |
| Dimensions (W*H*D) | 90mm x 25mm x 30.7mm | 90mm x 25mm x 30mm |
| Weight | 99g | 97g |
| Installation | Bottom: ¼-20UNC; Back: 2x M3 | Bottom: ¼-20UNC; Back: 2x M3 |
Write Your Own Review
- ORBBES Gemini 336 Stereo Depth Camera X1
- USB -C to USB - A Cable X1
- Tripod head X1
- Tripod X1
