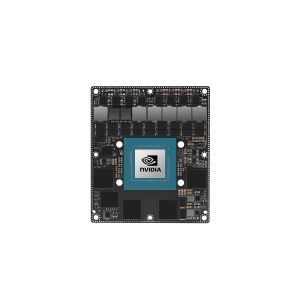

Nvidia Jetson AGX Xavier 64GB Module

Nvidia Jetson AGX Xavier 64GB Module

NVIDIA Jetson AGX Orin 32GB Module

SKU
DB-NVID-0051
Brand Reward Points
0
₹77,922.00
In Stock
Topic: Topic

Product Description



The NVIDIA Jetson AGX Orin™ 32GB module delivers up to 200 TOPS of AI performance with power configurable between 15W and 40W. This gives you more than 6X the performance of Jetson AGX Xavier in the same compact form-factor for robotics and other autonomous machine use cases.

This system-on-module supports multiple concurrent AI application pipelines with the NVIDIA Ampere GPU architecture, next-generation deep learning and vision accelerators, high-speed IO, and fast memory bandwidth. Now you can develop solutions using your largest and most complex AI models to solve problems such as natural language understanding, 3D perception, and multi-sensor fusion.

Jetson runs the NVIDIA AI software stack, and use-case specific application frameworks are available, including Isaac™ for robotics, DeepStream for vision AI, and Riva for conversational AI. You can save significant time with NVIDIA Omniverse Replicator for synthetic data generation (SDG), and by using NVIDIA TAO toolkit to fine-tune pretrained AI models from the NGC™ catalog.

Jetson ecosystem partners offer additional AI and system software, developer tools, and custom software development. They can also help with cameras and other sensors, as well as carrier boards and design services for your product.

Jetson Orin modules are unmatched in performance and efficiency for robots and other autonomous machines, and they give you the flexibility to create the next generation of AI solutions with the latest NVIDIA GPU technology. Together with the world-standard NVIDIA AI software stack and an ecosystem of services and products, your road to market has never been faster.



Technical Specifications

Model NVIDIA Jetson AGX Orin™ 32GB Module
AI Performance 200 TOPs (INT8)
GPU NVIDIA Ampere architecture with 1792 NVIDIA CUDA® cores and 56 Tensor Cores
Max GPU Freq 930MHz
CPU 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
CPU Max Freq 2.2 GHz
Memory 32GB 256-bit LPDDR5 204.8 GB/s
Storage 64GB eMMC 5.1
DL Accelerator 2x NVDLA v2.0
DLA Max Frequency 1.4GHz
CSI Camera

Up to 6 cameras (16 via virtual channels*)

16 MIPI CSI-2 lanes
D-PHY 2.1 (up to 40Gbps) | C-PHY 2.0 (up to 164Gbps)

Video Encode

1x 4K60 | 3x 4K30 | 6x 1080p60 | 12x 1080p30 (H.265) H.264, AV1

Video Decode

1x 8K30 | 2x 4K60 | 4x 4K30 | 9x 1080p60 | 18x 1080p30 (H.265)
H.264, VP9, AV1

UPHY

Up to 2 x8, 1 x4, 2 x1 PCIe Gen4 (Root Port and Endpoint) 3x USB 3.2

Networking

1x GbE
1x 10GbE

Display

1x 8K60 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1

Other I/O

4x USB 2.0
4x UART, 3x SPI, 4x I2S, 8x I2C, 2x CAN, DMIC & DSPK, GPIOs

Power 15W - 40W
Size

100mm x 87mm
699-pin Molex Mirror Mezz Connector

Integrated Thermal Transfer Plate
