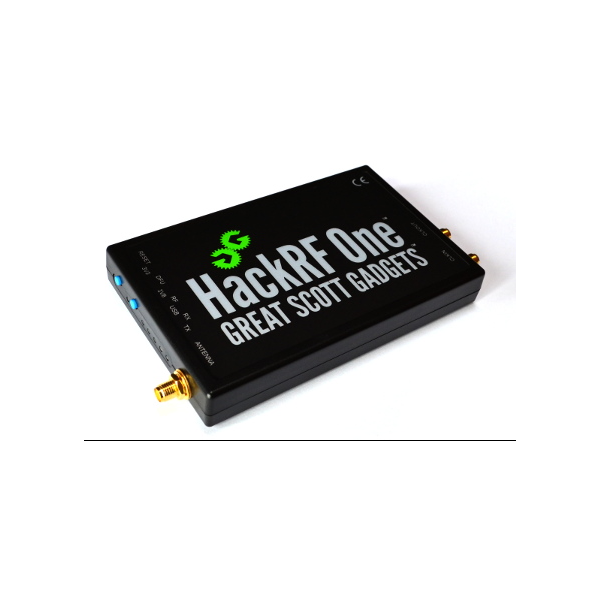

HackRF One from Great Scott Gadgets is a Software Defined Radio peripheral capable of transmission or reception of radio signals from 1 MHz to 6 GHz. Designed to enable test and development of modern and next generation radio technologies, HackRF One is an open source hardware platform that can be used as a USB peripheral or programmed for stand-alone operation.
Technical Specifications
HackRF One
> 1 MHz to 6 GHz operating frequency > Half-duplex transceiver > Up to 20 million samples per second > 8-bit quadrature samples (8-bit I and 8-bit Q) > Compatible with GNU Radio, SDR#, and more > Software-configurable RX and TX gain and baseband filter > Software-controlled antenna port power (50 mA at 3.3 V) > SMA female antenna connector > SMA female clock input and output for synchronization > Convenient buttons for programming > Internal pin headers for expansion > Hi-Speed USB 2.0 > USB-powered > Open source hardware
