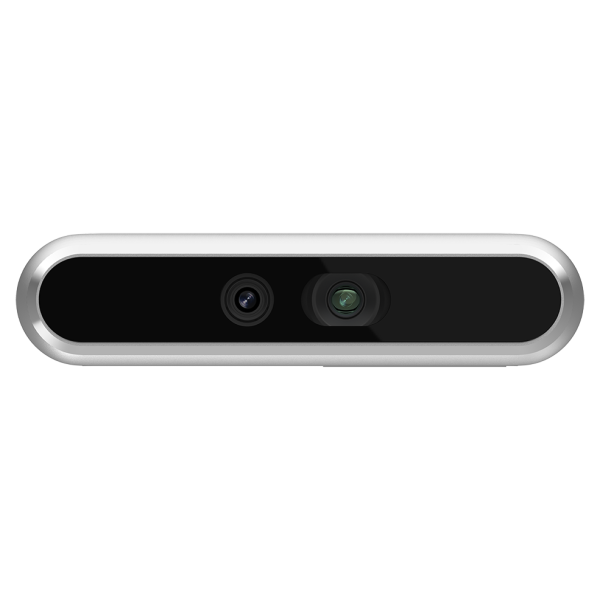

The RealSense™ Depth Camera D455f features our long range D455 with an IR pass filter. The addition of an IR Pass Filter over the lenses resolves repetitive pattern and false object detection due to light reflections.. The SDK 2.0 is designed to allow seamless transitions from one generation to the next and between our cameras.
Longer range for collision avoidance.
Matched RGB and Depth images make for easy scan recreations.
A set of image sensors with an IR pass filter that enable capturing of disparity between images up to 1280 x 720 resolution.
Support for the cross-platform, open-source RealSense™ SDK 2.0.
Integrates an IMU to allow your application to refine its depth awareness in any situation where the camera moves.
Easy Integration The Depth Camera D435if adds a 750 nm near-infrared filter at Intel's production line for simple out-of-the-box integration. D400f Product Family
Technical Specifications
Model
Use Environment
Indoor/Outdoor
Image Sensor Technology
Global Shutter
Ideal Range
.6 m to 6 m
Depth Technology
Stereoscopic
Minimum Depth Distance (Min-Z) at Max Resolution
~52 cm
Depth Accuracy
<2% at 4 m
Depth Field of View (FOV)
87° × 58°
Depth Stream Output Resolution
Up to 1280 × 720
Depth Stream Output Frame Rate
Up to 90 fps
Depth Filter
IR Pass
RGB Frame Resolution
1280 × 800
RGB Frame Rate
30 fps
RGB Sensor Technology
Global Shutter
RGB Sensor FOV
90° × 65°
RGB Sensor Resolution
1 MP
Camera Module
RealSense Module D450
Vision Processor Board
RealSense Vision Processor D4
Form factor
Camera Peripheral
Camera Dimension (Length × Depth × Height)
124 mm × 26.8 mm × 29 mm
Connectors
USB-C* 3.1 Gen 1*
Mounting Mechanism
– One 1/4‑20 UNC thread mounting point – Two M4 thread mounting points – Tripod
