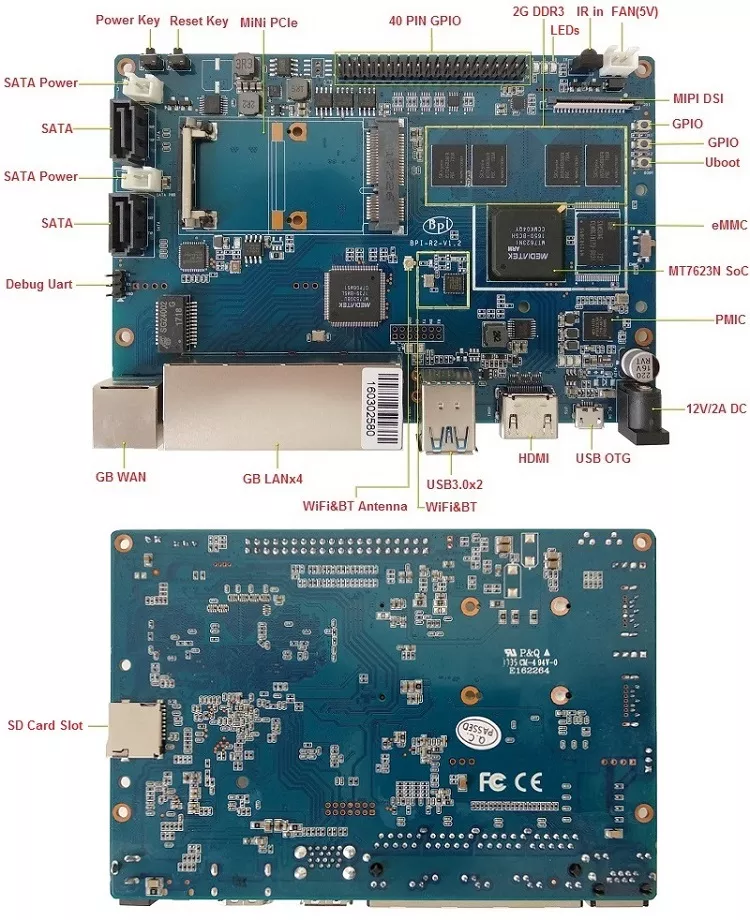

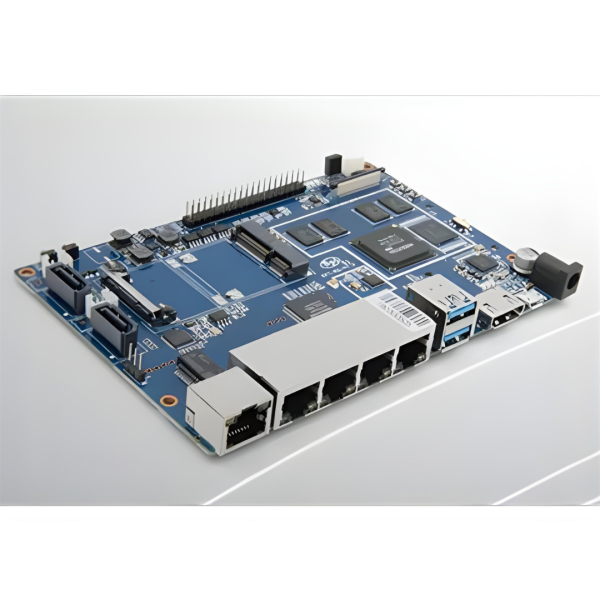

The Banana Pi R2 is a router based development board, which can run on a variety of open source operating systems including OpenWrt, Android, and Linux. It has 4 Gigabit LAN ports, 1 Gigabit WAN, and 300Mbs wireless N capabilities.
BPI-R2 integrate a Quad-code ARM Cortex-A7 MPcore operating up to 1.3GHz, The Router also includes a variety of peripherals, including HDMI TX, MIPI DSI, PCIe2.0, USB2.0 OTG, USB3.0 Port, SATA port,5 Gbps Port Gigabit Ethernet port, 802.11a/b/g/n wifi & BT4.1 onboard, also support 802.11ac/n WLAN connection thru mini PCI-e port.
MediaTek MT7623N, Quad-core ARM Cortex-A7
Mali 450 MP4 GPU
2G DDR3 SDRAM
Mini PCIE interface.
support 2 SATA interface
MicroSD slot supports up to 256GB expansion
8G eMMC flash (option 16/32/64G)
MIPI display interface support
5 port 10/100/1000 Mb Ethernet port
(2) USB 3.0 and (1) USB 2.0 otg port
1080P high-definition video playback
HDMI port and multi-channel audio output
WIFI&Bluetooth 4.1 with 802.11B/G/N onboard
Model | Banana Pi - R2 |
---|---|
CPU | MediaTek MT7623N, Quad-core ARM Cortex-A7 |
GPU | Mali 450 MP4 GPU |
Memory | 2G DDR3 SDRAM |
Storage | Onboard 8GB eMMC Flash, Micro SD-Card slot, Two SATA 2.0 Port |
Network | 5 x 10/100/1000 Mbit/s Ethernet (MT7530) |
WIFI&BT | Wi-Fi 802.11 b/g/n 2.4G/5G + Bluetooth BT4.1(MT6625L) |
Display(s) | HDMI (Type A) output with HDCP 1.4, resolutions up 1920x1200; MIPI Display Serial Interface (DSI) interface(4 data lanes) |
Video decoder(s) | Multi-format FHD video decoding, including Mpeg1/2, Mpeg4, H.263, H.264, etc. H.264 high-profile 1080p@60fps, HEVC/H.265 1080P@60fps |
Audio Output(s) | HDMI & I2S |
USB port | USB 3.0 PORT (x2), USB OTG (x1) |
mini PCIE | 1 mini pcie interface & 1 pcie pin define interface |
Remote | IR Receiver (x1) |
GPIO | 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWM |
Switches | Reset button, Power button, U-boot button |
LED | Power Status and 8P8C |
Power Source | 5 volt @2A via DC Power and/or Micro USB (OTG) |
Size & Weight | 148p;mm × 100.5mm 100g same ase Banana Pi BPI-R64 and Banana Pi BPI-R3 |
OS | OpenWRT, Debian, Ubuntu, Raspbian and others OS |
