Product Description

Banana Pi BPI-W3 single board computer is designed and developed by bananapi team for professional and enterprise users, powered by Rockchip RK3588 SoC quad ARM Cortex-A76 and quad Cortex-A55 consists of an eight-core CPU processor with dynamic frequency scaling up to 2.4GHz. Embedded high -performance 3D and 2D image acceleration module, AI accelerator NPU with a built -in 6 TOPS computing power.



Key Features:

  • Rockchip RK3588 quad ARM Cortex-A76 and quad Cortex-A55 consists of an eight-core CPU processor
  • ARM Mali-G610 MP4,
  • NPU for AI : 6Tops@INT8
  • 8G RAM and 32G eMMC flash onbord
  • 1x 2.5Gbps Ethernet
  • support HDMI in and HDMI out
  • MIPI CSI camera and MIPI DSI display support
  • M.2 Key E interface and M.2 Key M PCIe interface
  • 40 PIN GPIO
  • PoE function supportf an eight-core CPU processor

HardWare Specification of Banana Pi W3

SOCRockChip RK3588
CPUQuad Core A76+ Quad Core A55 ,use 8nm , 2.4GHz
GPUARM Mali-G610 MP4 GPU,Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
NPU6 TOPS,Support INT4/INT8/INT16 mixed operation,Support framework switching of TensorFlow/MXNet/PyTorch/Caffe
Encode&Decodeencode:8K@60fps H.265/VP9/AVS2、8K@30fps H.264 AVC/MVC、4K@60fps AV1、1080P@60fps MPEG-2/-1/VC-1/VP8 ,decode:8K@30fps H.265 / H.264
Ram4GB/8GB/16GB(up to 32GB)64bit LPDDR4/LPDDR4x/LPDDR5,Defalut LPDDR4 8GB
Flash16GB/32GB/64GB/128GB/256GB eMMC,support MicroSD card slot,Defaut :32GB
M2 Key MThe interface supports extension SSD
network2.5G network port(RLT8125BS)
video output2 x HDMI2.1(just one support 8K@60fps or 4K@120fps,other support 4K@60fps),1 x MIPI-DSI(4K@60fps),1 x DP1.4(8K@30fps),
video input1 x 4Lanes MIPI CSI / 2 x 2lanes MIPI CSI,1 x HDMI RX2.0
Voice2 x HDMI voice output ,1 x DP1.4 voice output,1 x headphone (es8316)
WirelessM2 E key interface support sdio、pcie、usb BT&wifi(AP6256,Intel AX210)
USB2 x USB3.1,2 x USB2.0,1x USB-C(DP1.4(8K@30fps)/OTG/PD fast charging)
OthersFan、RTC、LED、debug
ButtonPower Button、Reset Button、 Recovery Button、Root Button
GPIO40 x GPIO(UART、SPI、I2C、I2S、PWM、ADC、 GPIO、 5V power 、3.3V power)
PowerDC 12V/2.5A bore diameter 2.5mm,support USB Type-C PD 2.0 ,9V/2A, 12V/2A, 15V/2A,Support 12V POE power supply
SystemAndroid 12.0、Ubuntu、Debian11、Buildroot、Kylin Linux
Size148 mm × 100.5mm
operating temperature-10℃ ~ 70℃
storage temperature-20℃ ~ 70℃

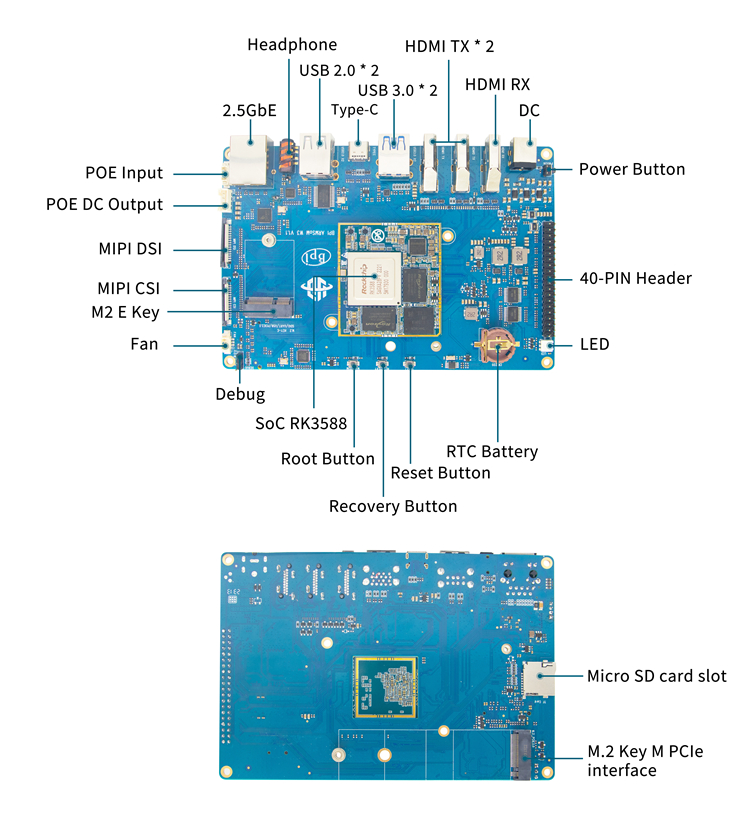

Hardware interface:

Banana Pi BPI-W3 use LGA core board design ,default with 8GB RAM and 32GB eMMC,The LGA BGA core board in interface led to the RK3588 all IO definition, can support RK3588 all definition interface, can be easily modified to support the application you want. Flexible customization。

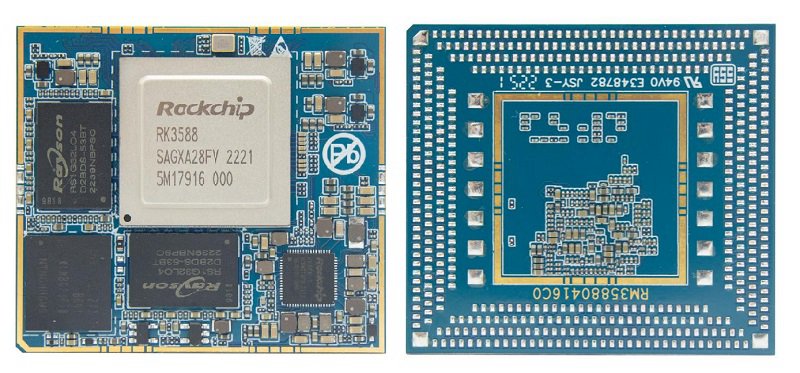

Onboard LGA BGA core board
