Product Description

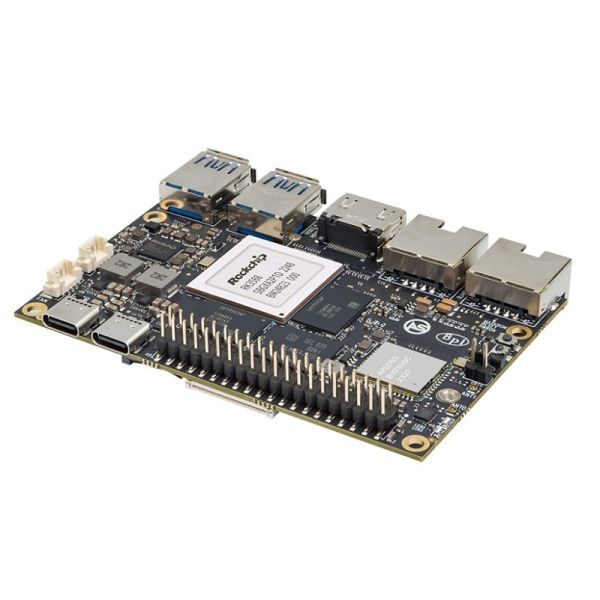

Banana Pi BPI-M7 with Rockchip RK3588, 8/16/32G,RAM 64/128G eMMC,wifi6 support . 2x2.5G port ,1xHDMIout ,2x USB3.0,2xTYPE-C,2x MIPI CSI interface and 1x MIPI DSI interface, 1x M.2 KEY M interface,40 PIN GPIO ,Mini size just 92x62mm.

The Banana Pi BPI-M7 is powered by Rockchip‘s latest flagship RK3588,octa-core 64-bit processor, with a max frequency of 2.4GHz, a 6 TOPS NPU, and up to 32GB of RAM.

Banana Pi BPI-M7 RK3588 SBC Features:

* 8K video encoding/decoding support
* Abundant interfaces support
* Dual 2.5G Ethernet support
* WiFi 6 support
* BT 5 support
* Multiple video outputs support
* Multiple operating systems support

Generally, BPI-M7 is applied for various applications,such as, ARM PCs, edge computing, cloud servers, AI, cloud computing, virtual/augmented reality, blockchain, smart NVRs and more.



Technical Specifications

Model/Type Banana Pi - M7 ( 8G Ram + 64G eMMC )
SOC RockChip RK3588
CPU RK3588 Quad-Core Cortex-A76@ 2.4GHz+Quad-CoreCortex-A55@ 1.8GHz,8nm process
GPU GPU Mali-G610 MP4 (4x256KB L2 Cache) Supports OpenGL ES3.2/OpenCL2.2/Vulkan1.1
NPU 6 TOPS@INT8(3 NPU core)
Supports INT4/INT8/INT16 mixed computing
Supports frameworks like TensorFlow, MXNet, PyTorch, Caffe, Tflite, Onnx NN, Android NN, etc
VPU/Codec Hardware Decode: 8K@60fps H.265/VP9/AVS2、 8K@30fps H.264 AVC/MVC、 4K@60fps AV1、1080P@60fps MPEG-2/-1/VC-1/VP8

Hardware Encode:8K@30fps H.265 / H.264
ISP Integrated 48MP ISP with HDR&3DNR
RAM 8GB max 32GB )64bit LPDDR4/LPDDR4x,default 8GB LPDDR4x
Flash 32GB/64GB/128GB eMMC,default 64GB eMMC,Supports MicroSD card expansion
PCIe 1x M.2 Key M (PCIe 3.0 4-lanes). Expandable SSD support for 2280/2260/2242/2230 M.2 SSD cards, default 2280
Networking 2x 2.5G Ethernet
Onboard IEEE 802.11a/b/g/n/ac/ax WIFI6 and BT5 (AP6275P)
Video Out 1x HDMI 2.1, supports 8K@60fps
1x MIPI DSI up to 4K@60fps
1x DP 1.4 up to 8K@30fps
Video In 2x 2-lane MIPI CSI, up to 2.5Gbps per lane
Audio 1x HDMI audio out
1x HP audio out
1x Type-C 3.1 (DP1.4) audio out
USB 1x USB 3.0 (USB 3.1 Gen 1), equivalent to USB 3.2 Gen 1/USB 3.0, up to 5Gbps
1x USB Type-C 3.1(DP1.4/OTG)
1x USB 2.0 High(480Mbps)/Full(12Mbps)/Low-Speed(1.5Mbps) modes
40-pin Fully compatible with Raspberry Pi 40-pin header for connecting abundant add-on modules
Supports UART/SPI/I2C/I2S/PWM/ADC/5V Power/3.3V Power
Other 1x 5V fan interface
1x battery connector for low power RTC chip HYM8563TS
2x LEDs - blue LED blinks on system start, red LED user controllable
Power Input USB Type-C PD 2.0, 9V/2A, 12V/2A, 15V/2A
Buttons 1x PWRON button for sleep/wake,1x Reset button for reboot,1x Maskrom button for maskrom burn-in mode
OS Support Official: :Android 12.0,Debian11,Buildroot
3rd Party:Armbian,Ubuntu 20.04,Ubuntu22.04,Kylin OS
Dimensions 92 mm x 62mm
Operating temperature 0℃ ~ 80℃



Hardware Interface:
