Product Description

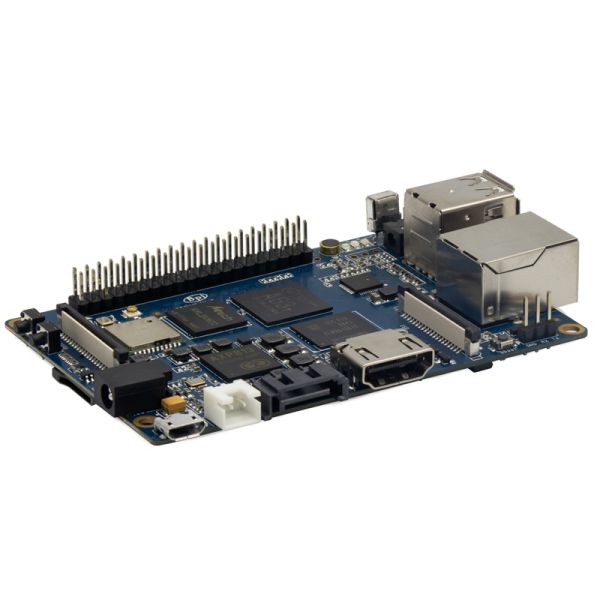

Banana Pi M3 is a super charged single board computer with an Octa-core processor and 2GB of RAM. Along side the elite processing unit, it features Gigabit Ethernet, 2 USB, SATA, WiFi&BT, and HDMI connection. It can run on a variety of operating systems including Android, Lubuntu, Ubuntu, Debian, and Raspbian



Technical Specifications

ModelBPI- M3
CPUAllwinner A83T ARM Cortex-A7 Octa-Core 1.8 GHz, 512KB L1 cache and 1MB L2 cache
GPUPowerVR SGX544MP1 Comply with OpenGL ES 2.0 OpenCL 1x, DX9_3
Memory2 GB LPDDR3 (shared with GPU)
StorageOn Board 8GB eMMC Flash, Micro SD-Card slot, SATA 2.0 Port (USB-to-SATA bridge)
Network10/100/1000 Mbit/s Ethernet (Realtek RTL8211E/D) + Wi-Fi 802.11 b/g/n (AP6212) + Bluetooth BT4.0
Video Input(s)A CSI input connector allows for the connection of a designed camera module
Video Output(s)HDMI 1.4 (Type A Full), MIPI Display Serial Interface (DSI) for raw LCD Panel
Audio Input(s)On board microphone
Audio Output(s)3.5mm jack and HDMI
USB portsUSB 2.0 PORT (x2), USB OTG (x1)
RemoteIR Receiver (x1)
GPIO40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWM
SwitchesReset, Power and U-boot
LEDPower Status and 8P8C
Power Source5 volt @2A via DC Power and/or Micro USB (OTG)
Size & Weight92x60mm, 48g
OSAndroid and Linux
