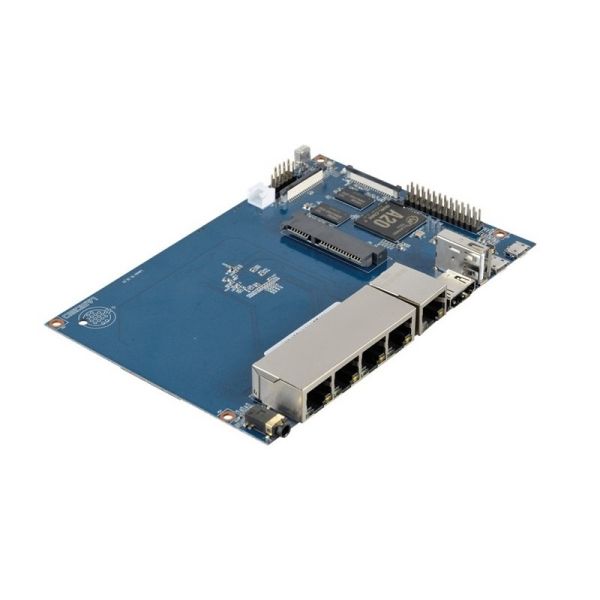

The Banana Pi R1 is a router based Banana Pi running on the same SoC as the M1 Classic Pi.
The R1 is a open hardware router that can run on a variety of open source operating systems including OpenWrt, Android, and Bananian. The R1 has slim router form factor with a bay for 2.5" HDDs. It also has 4 Gigabit LAN ports, 1 Gigabit WAN, and 300Mbs wireless N capabilities.
Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

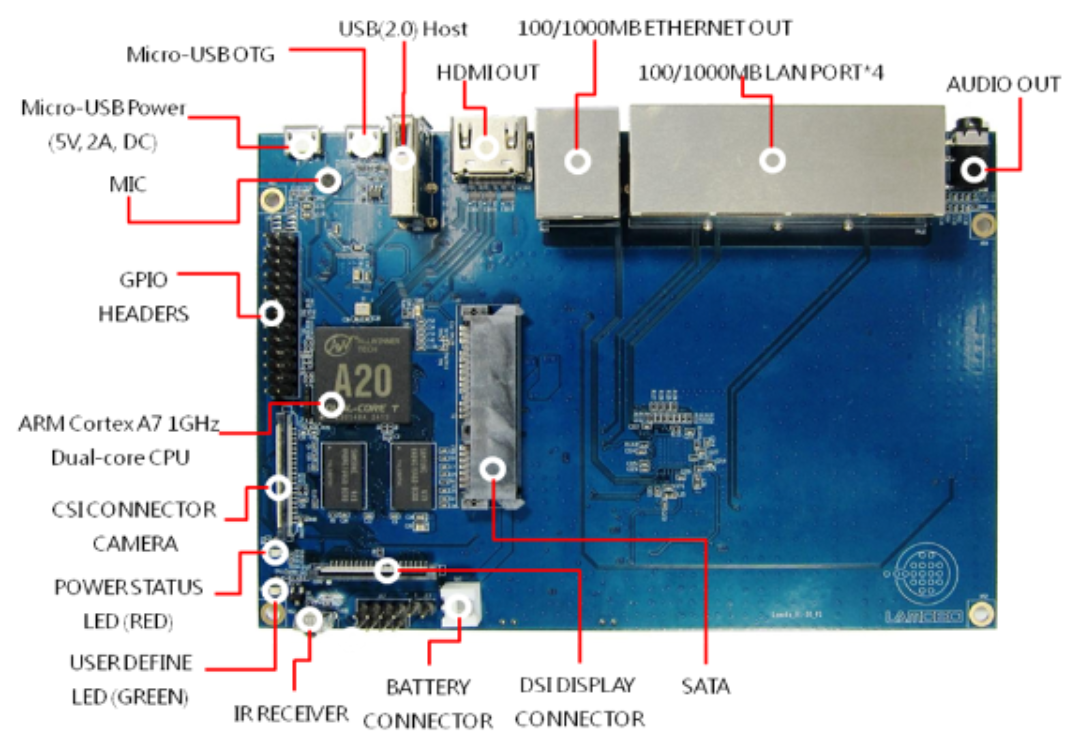

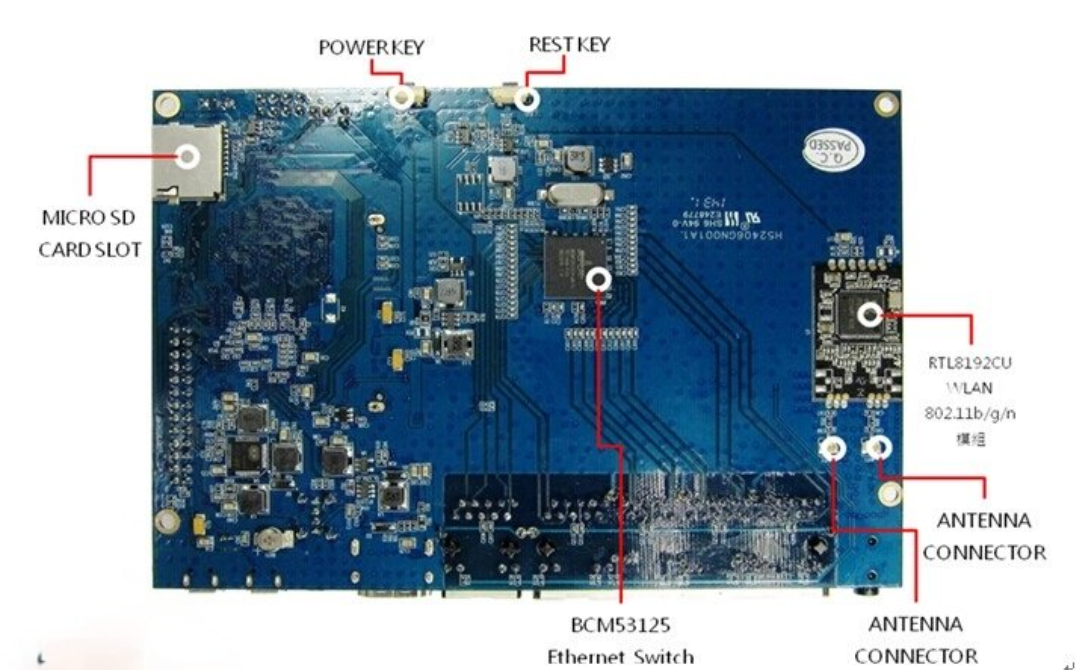

Hardware interface :
Technical Specifications
Model
Banana Pi R1
CPU
A20 ARM Cortex -A7 Dual-Core
GPU
ARM Mali400MP2Complies with OpenGL ES 2.0/1.1
Memory
1GB DDR3
Network
10/100/1000 Ethernet 8P8C, Wi-Fi
Video Input
A CSI input connector allows for the connection of a designed camera module
Video Outputs
HDMI, CVBS, LVDS/RGB
Audio Outputs
3.5mm jack and HDMI
Power Source
5 volt via Micro USB (DC in only) and / or Micro USB OTG
USB 2.0 ports
2(direct from Allwinner A20 chip)
GPIO
GPIO, UART, I2C BUS, SPI BUS, WITH TWO CHIP SELECTS, CAN bus, ADC, PWM, +3.3V, +5V, GND
LED
Power Key & 8P8C
Storage
SATA 2.0
OS
Android 4.4, Android 4.2, Raspbian, Lubuntu, Open Suse, Debian
