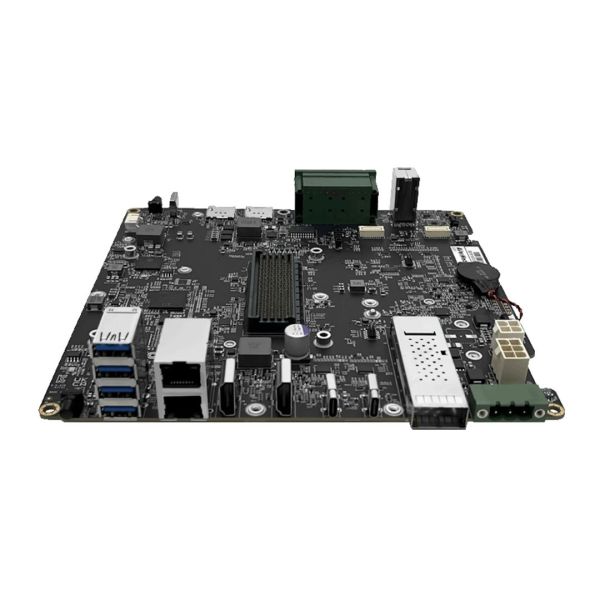

AVerMedia's carrier board D331 equips powerful NVIDIA Jetson T5000™/Jetson T4000™. This efficient system-on-module (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.
D331 is designed for the industry applications with spatial concern and feature a rich assortment of I/O ports for rapid AI-based solution development and seamless deployment as required by demanding business applications.
AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MoQ, in addition to NVIDIA's JetPack™ SDK.
Key Industries
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
AMRs: AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.
Smart Security: Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.
Smart Inspection: Smart inspection relies on live camera feeds to benefit from fast and accurate detection to improve quality control in production.
Technical Specifications
Model
D331
NVIDIA Module Compatibility
NVIDIA Jetson T5000™/Jetson T4000™
Networking
2x GbE RJ-45 (1 × port supports OOB NCSI for optional OOB module)
1x QSFP (4× 10 GbE for JetPack 7.1 / 4 x 25 GbE for JetPack 7.2)
1 x M.2. key E 2230 for Wi-Fi 6
1x M.2 Key B 3042/3052 for 4G/5G
SIMSlot
2 × SIM slots for 4G/5G module; dual SIM capability depends on the installed cellular module
Display Output
2 x HDMI output (3840 x 2160 at 60Hz)
Temperature
Operating temperature: -40 to 85°C (carrier board, W/O audio) Operating temperature: -25 to 85°C (carrier board, W/ audio) Storage temperature -40°C ~ 85°C Relative humidity 40 °C @ 95%, Non-Condensing
Camera Inputs
1x 120pin for GMSL camera board
USB
1x USB 3.2 Type-C for BSP install
1x USB 3.2 Type-C (usage limitations apply; refer to User Manual for details)
4x USB 3.2 Type-A (5Gbps x2 ; 10Gbps x2)
Optional 8x USB3.2 Type-A (via daughter board)
Audio
2x 3.5mm phone jack for Mic in & line out.
Storage
2x NVMe M.2 Key M 2280 1x NVMe M.2 Key M 2280 PCIe Gen4 x2 (8xPoE, 8xUSB board, either one)
1x NVMe M.2 Key M 2280 PCIe Gen4 x4
TPM
TI SLB9672XU2.0 on board
Expansion
2x10 Euro Terminal Block 1x CAN-FD (Isolated 3KV), 3x CAN-FD with Transceiver, +5V output 1A, +3.3V output 1A,UART, I2C
