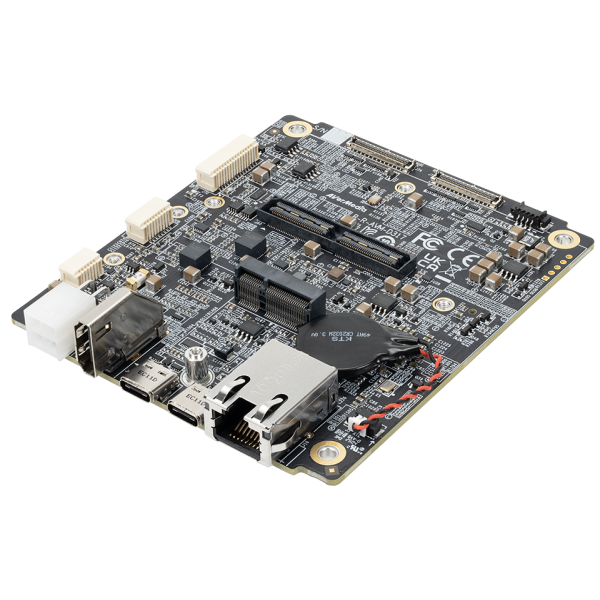

AVerMedia Carrier Board D317 support NVIDIA® Jetson AGX Orin , which brings next-level AI performance and power-efficient capability for all autonomous machines. This optional SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.
D317 includes a 120-pin high-speed connector for connecting MIPI SerDes cameras, which can fulfill the demand for AMRs. In addition, a sufficient Ethernet bandwidth with 10G is excellent for applying smart security, enabling dozens of IP cameras to stream simultaneously. The connector for the 10GigE Vision Camera is also great for smart inspection. Lastly, with its compact size, D315 5G furnishes a PCIe slot for multi-function expansion and excellent compatibility with 5G and Wi-Fi 6.
Key Industries
AVerMedia devices are built with flexibility in mind and are designed for the following verticals.
AMRs
Smart Security
Smart Inspection
AMRs deployment relies on live camera feeds to provide a rapid and flexible adjustment for the working process and creates a significant productivity growth.
Smart security relies on live camera feeds to benefit from the video analysis to improve and ensure community safety.
Smart inspection relies on live camera feeds to benefit from fast and accurate detection to improve quality control in production.
Technical Specifications
Model
D317
NVIDIA GPU SoC Module Compatibility
NVIDIA® Jetson AGX Orin module
Networking
•1x GbE RJ-45
•1 x M.2 key E 2230 for wifi 6
•Optional 2x 10G RJ-45 (via daughter board) (TBD)
•Optional 8x PoE (via daughter board) (TBD)
•Optional 1x M.2 Key B for 5G connection (via 5G、PoE/5G、USB/5G daughter board) (TBD)
Display Output
1 x HDMI output 3840 x 2160 at 60Hz
Temperature
•Operating temperature: -40 to 85°C (carrier board), -20 to 70°C (with fan) (TBD)
•Storage temperature -40°C ~ 85°C (TBD)
•Relative humidity 40 °C @ 95%, Non-Condensing
Camera Inputs
1x 120pin for GMSL camera board
USB
•1x USB 3.2 Type-C for BSP install
(supports OTG mode,when using with PoE/5G daughter board or USB/5G daughter board,
