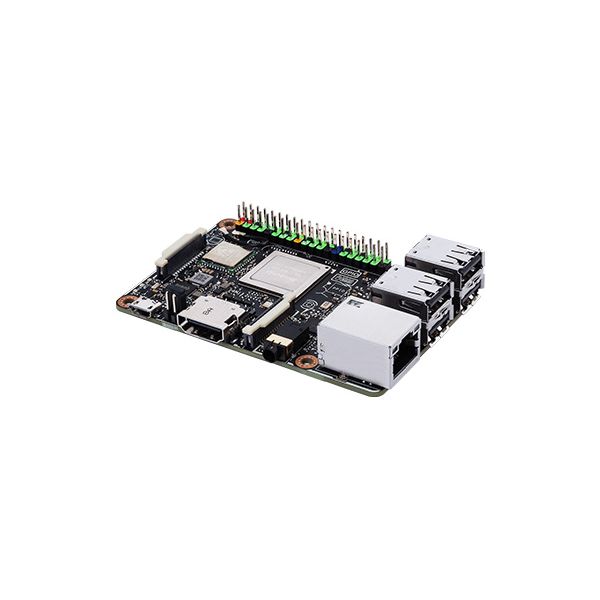

ASUS Tinker Board R2.0

SKU

DB-ASU-0157-1

Brand Reward Points

₹6,799.00 ₹8,022.82

In Stock

Topic: Topic

Details

Product Description

With its powerful and modern quad-core ARM-based processor — the Rockchip RK3288-CG.W — Tinker Board R2.0 series offers significantly improved performance versus other popular SBC boards. Powered by an ARM-based Mali™-T764 GPU, Tinker Board R2.0's GPU and fixed-function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more.

* HD & UHD video playback at 30 fps on Tinker Board R2.0 is currently only available via the included media player. Third-party video players and applications may not offer hardware acceleration, which will result in limited or unstable playback performance.

Technical Specifications

ASUS	Tinker Board R2.0
Processor	Rockchip RK3288-CG.W Arm® Cortex®-A17 Quad-core SoC
GPU	ARM® Mali™-T760 MP4 GPU
Display	1 x HDMI™* supports up to 4K 1 x 15-pin MIPI DSI supports up to HD * HDMI™ supports a maximum resolution of up to 4K, and the iGPU only supports H.264/H.265 4K hardware decoders.
Memory Size	Dual-CH LPDDR3 2/4GB
Storage	Micro SD(TF) card slot Micro SD(TF) card slot 16/32 GB eMMC
Connectivity (optional)	Realtek RTL8211E-VB-CG (A version) or Realtek RTL8211F-CG (B version) GB LAN 802.11 b/g/n wireless & BT 4.2 + EDR
Audio	Realtek ALC4030U Codec with 1 x 3.5mm audio jack (with Mic & plug-in detection) 1 x S/PDIF TX pin 1 x PCM/I2S pins (from GPIO)
USB	4 x USB 2.0 ports
Camera Interface	1 x 15-pin MIPI CSI-2 (2lane)
Internal Headers	1 x 40-pin header includes: - up to 28 x GPIO pins - up to 1 x PCM/I2S - up to 2 x SPI bus - 2 x 5V power pins - up to 2 x I2C bus - 2 x 3.3V power pins - up to 4 x UART - 8 x ground pins - up to 2 x PWM 1 x 2-pin Power-on header 1 x 2-pin eMMC recovery header 1 x 2-pin contact points includes: - 1 x PWM signal - 1 x S/PDIF signal
Power Connector	5V/2.5~3A Micro USB power input * Supports low power voltage detection.
OS Support	Debian 10 (32-bit) Android 11 or latest version available (32-bit)
Dimension	3.37” x 2.125” (85 x 56 mm)
