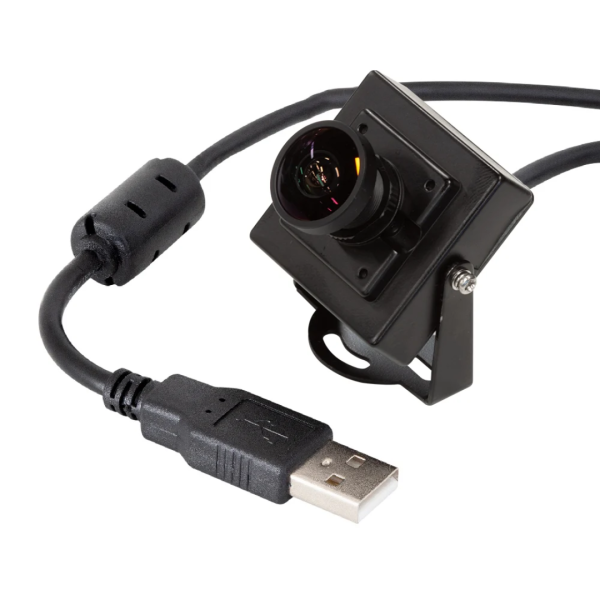

Arducam Fisheye, Low Light USB 2.0 Camera based on 1/2.8” 2MP IMX291 image sensor, UVC compliant. No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera. Superior low light feature, shot sharp images even at night. Built with a single microphone, capture video with audio.
Feature
Application
Model | Arducam 140 Degree Ultra Wide Angle 1/2.3″ M12 Lens with Lens Adapter for Raspberry Pi High Quality Camera (LN056) |
Camera | |
Sensor: | 1/2.8” IMX291 |
Resolution: | 2MP 1945H x 1109V |
Data Format: | MJPG/YUY2/H.264 |
Frame Rate: | H.264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360 |
Dynamic Range: | 80DB |
Lens | |
-Field of View (FOV): | D= 175° |
Lens Mount: | M12 |
Focusing Range: | 3.3ft (1M) to infinity |
IR Sensitivity: | Integral IR filter, visible light only |
Functionality and Compatibility | |
Auto Controlled Features: | Saturation, Contrast, Acutance, White balance, Exposure. |
Audio: | Single microphone (optional dual channel) |
System Compatibility: | Windows, Linux, Android, and Mac with UVC |
Power | |
Power Supply: | DC 5V |
Working Current: | MAX 300mA |
Physical | |
Operating Temp.: | -4°F~158°F (-20°C~+70°C) |
Dimension: | 36mmx44x30mm |
Cable Length: | 3.3ft (1M) |
