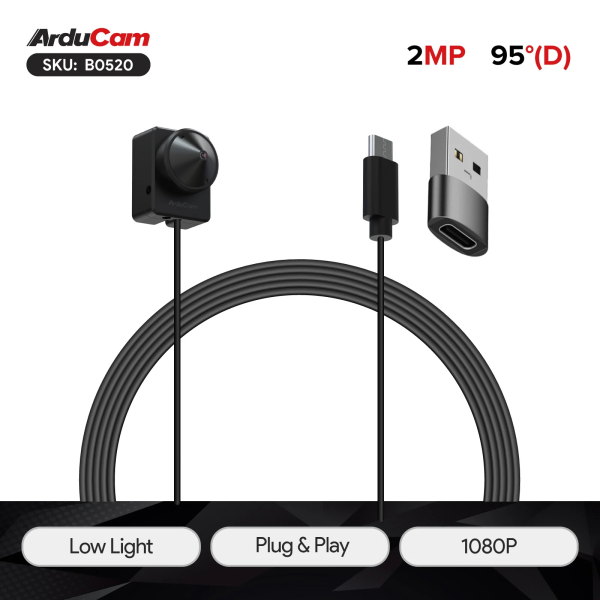

Arducam 2MP Low Light USB Camera Module with M12 Lens ( SKU : B0520 )

SKU
TEMP-ACC-0548
Brand Reward Points
0
₹4,350.00 ₹5,133.00
In Stock
Topic: Topic

Product Description

The Arducam Tiny USB Camera features a high-quality Sony 1/2.8″ CMOS sensor with an 80dB wide dynamic range.
This compact camera measures just 19.5 x 15 x 17.3 mm and includes a pinhole lens with a 95° diagonal angle. It boasts the smallest camera board and M12 lens, housed in a CNC metal heat dissipation casing.

The camera is UVC drive-free, supporting Windows XP/7/8/10, Linux, and Mac OS. Just plug it into your device via USB Type-C or the included Type-C to USB-A adapter—no additional drivers needed.

Applications

  • Home Security Surveillance
  • Video Surveillance
  • 3D Scanning and Metrology
  • Live Streaming
  • Nanny Camera

Features

  • High-Quality Imaging: Equipped with a Sony 1/2.8″ color CMOS sensor with an 80dB wide dynamic range, and a conical lens providing a 95° diagonal angle for fluent 1080P30 video recording.
  • Enhanced Low Light Performance: Designed to excel in low light conditions, capturing detailed HD images even in minimal lighting.
  • Compact and Portable: Measuring just 19.5 x 15 x 17.3 mm, this lightweight camera is perfect for use with smartphones, tablets, and laptops, making it easy to carry and connect on the go.
  • Miniature Design: Features the smallest camera board and M12 lens in a unique CNC metal heat dissipation housing. Includes a Type-C connector and a Type-C to USB-A port adapter, expanding your connectivity options.
  • Plug & Play: UVC drive-free compatibility supports Windows XP/7/8/10, Linux, and Mac OS. Easily connect to your PC, laptop, or Raspberry Pi via USB with no additional drivers needed.



Technical Specifications

Image Sensor
Still Resolution2 Megapixels
Color Filter TypeColor
Shutter TypeRolling
Optical Size1/2.8″
Output FormatMJPG/YUY2/H.264
Pixel Size2.9μm x 2.9μm
Sensor Active Area1937(H) x 1097(V)
Frame Rate (USB 2.0)MJPG: 30fps@1920×1080, 1280×720, 800×600, 640×480, 320×240;
YUY2: 30fps@640×480, 320×240; 10fps@1280×720,800×600; 5fps@1920×1080;
H.264: 30fps@1920×1080, 1280×720, 800×600, 640×480, 320×240;
Lens
Focus TypeManual Focus
FOV95°(D) ×82° (H)×66°(V)
Lens MountM12 Lens
F.NOF2.5
E.F.L3.7mm
TV Distortion<-13%
IR SensitivityIntegral IR-cut Filter, visible light only
Default Focus Range1m-∞
USB Interface
InterfaceUSB 2.0 Device
ConnectorUSB Type-C
UVC CompliantNo additional drivers required
Electrical and Mechanical
Operating Voltage5 V +/- 5%
Operating Temp.32°F-158°F (0°C to 70°C)
Power RequirementsMax: 1.1W
Overall Size19.5×15×17.3 mm
Functionality and Compatibility
Supported OSWindows, Linux, Android and MAC OS
Recommend Sample ApplicationAmcap for Windows
UVC ControlsBrightness, Hue, Contrast, Saturation, Sharpness, Gamma, White Balance (Manual/Auto), Gain, Backlight Comp, Exposure (Manual/Auto)
Write Your Own Review
You're reviewing:Arducam 2MP Low Light USB Camera Module with M12 Lens ( SKU : B0520 )
  1. 1 x Arducam 2MP Camera Module with USB Type-C Cable (1m)
  2. 1 x USB Type-C to USB A adapter
