Arducam 2.3MP AR0234 Global Shutter Camera for NVIDIA Jetson Nano/NX and Jetson Orin NX (B0429)

SKU
CAM-ARD-0113
Brand Reward Points
0
₹9,350.00 ₹11,033.00
In Stock
Topic: Topic

Product Description

Currently, the Nvidia Jetson Official only support IMX219 and IMX477 Camera Module, and many other cameras do not support directly using. Arducam’s Jetvariety project (short for Jetson variety) wants to solve the Jetson Nano camera issues with a universal solution. Based on our Raspberry Pi MIPI camera projects, we’ve managed to quickly increase the variety of Jetson Nano cameras with our proprietary general-purpose camera solution – one adapter board and one kernel camera driver for all. Now it’s much easier to add a new camera to the Jetson Nano.
Arducam AR0234 Global Shutter Camera based on 1/2.6” 2.3MP AR0234 Color Image Sensor, this global shutter camera eliminates rolling shutter artifacts to better capture fast-moving objects. It can be used for dynamic capture of high-speed moving objects, real-time monitoring of factory machines, etc.

Currently, NVIDIA official has released the NVIDIA Jetson Orin series developer board. Based on it, we have also adapted Arducam Jetvariety camera into NVIDIA Jetson Orin NX kernel.

Arducam AR0234 Global Shutter Camera based on 1/2.6” 2.3MP AR0234 Color Image Sensor, this global shutter camera eliminates rolling shutter artifacts to better capture fast-moving objects. It can be used for dynamic capture of high-speed moving objects, real-time monitoring of factory machines, etc.



Applications

  • Gesture recognition
  • 3D scanning
  • Position tracking
  • Machine vision
  • AR/VR/MR/XR, etc.

Features

  • Jetvariety Solution: This camera adopts the Arducam Jetvariety solution. We compiled the driver for this camera to be supported on NVIDIA Jetson platforms.
  • Global Shutter: This camera is based on the 2.3MP AR0234 Color Global Shutter Image Sensor which can eliminate rolling shutter artifacts, performs much better than the rolling shutter ones
  • when shooting high-speed moving objects.
  • External Trigger Function: This function is used to capture the image and helps in synchronized streaming by connecting two or multiple cameras. In production applications (such as assembly line
  • production), the external trigger mode can synchronize the camera with other devices.
  • Shot Image and Video: Image resolution of 2.3MP 1920×1200; output image format of RAW; Output video Format of MJPEG with frame rate 1920×1200@30fps; 1920×1080@30fps; 1280×720@60fps.



Technical Specifications

ModelArducam 2.3MP AR0234 Global Shutter Camera for NVIDIA Jetson Nano/NX and Jetson Orin NX (B0429)
Image Sensor2.3MP AR0234
Optical Size1/2.6”
Pixel Size3μm(H)×3μm(V)
Number of effective pixels1920(H)×1200(V)
Frame Rate30fps@1920×1200, 30fps@1920×1080, 60fps@1280×700
Resolution&Frame Rate(NVIDIA Orin NX)30fps@1920×1200, 30fps@1920×1080, 60fps@1280×720
InterfaceMIPI 2-Lane
F.NO3.0
Lens TypeM12
Focal length3.6mm
Field of View90°(H), 75°(V), 120°(D)
Shutter TypeGlobal Shutter
Color FilterRGB
Output FormatRAW10

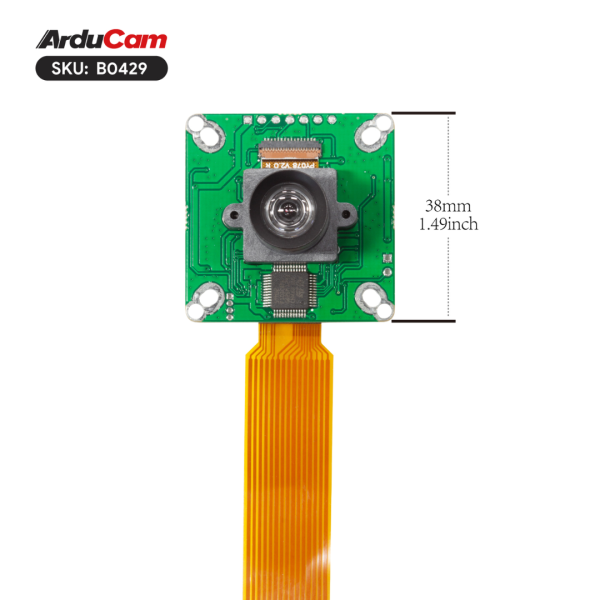

Camera Board Size38mm x 38mm
Write Your Own Review
You're reviewing:Arducam 2.3MP AR0234 Global Shutter Camera for NVIDIA Jetson Nano/NX and Jetson Orin NX (B0429)

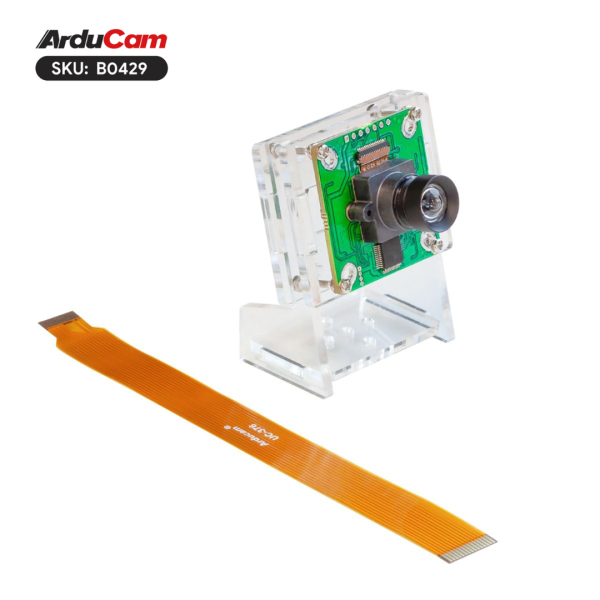

  1. Arducam 2.3MP AR0234 Global Shutter Camera Module X1
  2. 150mm 15pin to 22pin FPC cable X1
  3. 150mm 22pin to 22pin FPC cable X1
  4. acrylic case kit with assembly accessories X1
  5. Note Nvidia Jetson board is not included in the package You need to install the driver before using it This camera is released for the official NVIDIA® Jetson™ Developer Kit, and it does not guarantee to support other third-party boards.
