Arducam 1MP OV9281 Monochrome Global Shutter Camera Module for Raspberry Pi 4/3B+/3 (B0162)

SKU
CAM-ARD-0039
Brand Reward Points
0
₹2,529.00 ₹2,984.22
In Stock
Categories:
Topic: Topic

Product Description

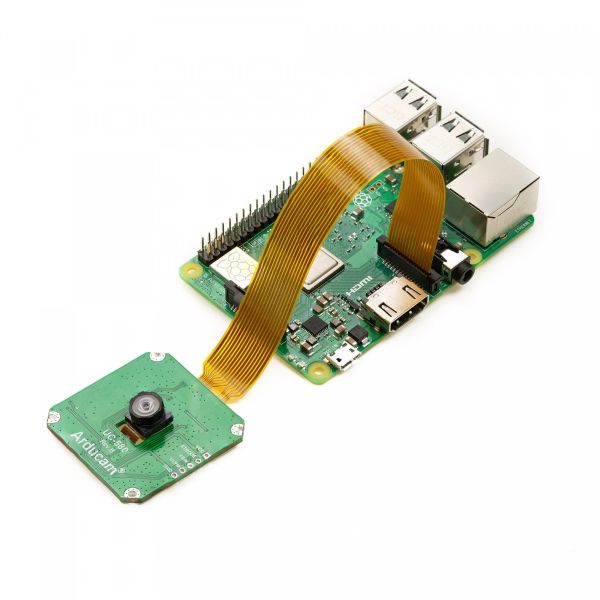

The Arducam monochrome (B&W) global shutter 1280×800 resolution OV9281 camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware.

The sensor’s global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head, and eye tracking, and depth and motion detection.



Technical Specifications

Name B0162
SensorMonochrome global shutter OV9281
Pixel Size3 μm x 3 μm
Active array size1280 x 800
Optical Size1/4 inch
Focusing Range65mm ~ infinite
IR SensitiveVisible light only, build-in 650nm IR cut filter
Output interface1-lane MIPI serial output with Arducam SDK.
Output formatsRAW 8/10
Maximum image transfer rate1280 x 800@120 fps with the Official driver/Arducam SDK.
Board Size40mm x 40mm
Lens SpecsFoV – 166°(D), EFL – 0.83mm, F.NO – 2.0
