Product Description

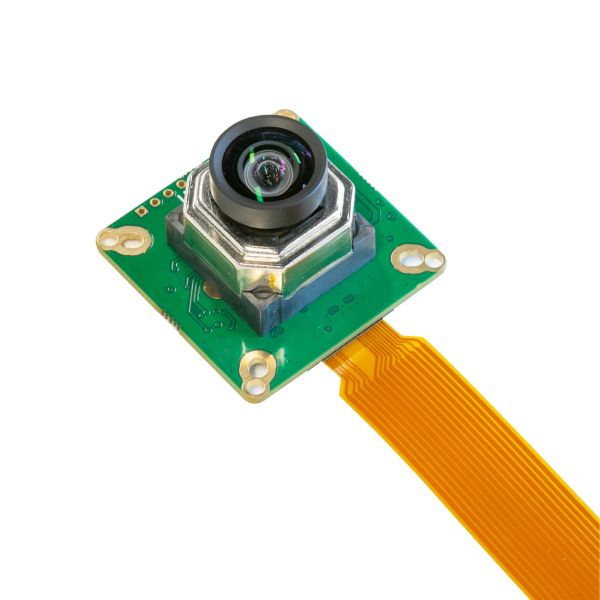

This Arducam High-Quality motorized focus camera module integrates a motor that could be controlled by software for a smarter focus, and you will no longer focus the camera by screwing the lens with your bare hands. Instead, keyboard keys or OpenCV can be used to remotely control the focusing process of your HQ camera. Other than its motorized focus, it offers the same picture quality and camera controls as the Raspberry Pi High-Quality camera. However, the Arducam High-Quality Camera Modules do not require any hardware modifications to work with the Jetson Nano/Xavier NX Platform.
Currently, NVIDIA official has released the NVIDIA Jetson Orin series developer board. Based on it, we have also adapted the camera to the NVIDIA Jetson Orin kernel.
Technical Specifications
| Name | B0273 |
|---|---|
| Still Resolution | 12.3 Megapixels |
| Video Modes |
NVIDIA Jetson Nano/Xavier NX/Orin NX/Orin Nano/AGX Orin: L4t 32.x: 4032x3040@30fps, 3840x2160@30fps, 1920x1080@60fps L4t 35.x: 4032x3040@20fps, 3840x2160@30fps, 1920x1080@60fps |
| Sensor Resolution | 4056 x 3040 pixels |
| Sensor image area | 6.287mm x 4.712 mm (7.9mm diagonal) |
| Pixel Size | 1.55 µm x 1.55 µm |
| Optical Size | 1/2.3" |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
